产品介绍:
用途:
本产品具有卓越的耐高温性能、耐潮湿性能、阻燃性能。特点:重量轻、体积小、柔软。主要用于-65~260℃高低温条件下电子设备、仪器仪表线路及其它精密电器装置内部连接等。
Usage:
This product has excellent high temperature resistance, moisture resistance, flame retardant properties. Features: light weight, small size, soft. Mainly used for -65~260℃ high and low temperature conditions, electronic equipment, instruments and circuit and other precision electrical devices, such as internal connection.
立即咨询

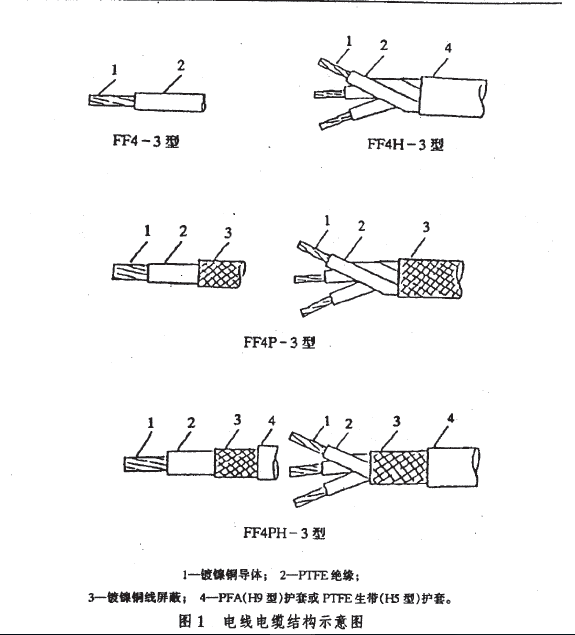

镀镍铜芯聚四氟乙烯绝缘电线电缆
Nickel plated copper core, PTFE insulated wire and cable for aerospace applications
技术规范 specification:GJB/773A/2A-2000
名称:
FF4-3 镀镍铜芯PTFE绝缘电线电缆
Nickel plated copper core, PTFE insulated wire and cable
FF4P31-3 镀镍铜芯PTFE绝缘镀镍圆铜线编织屏蔽电线电缆
Nickel plated copper core PTFE insulated nickel plated round copper wire braid shielded wire and cable
FF4H9-3 镀镍铜芯PTFE绝缘PFA护套电线电缆
Nickel plated copper core PTFE insulated PFA sheathed wire and cable
FF4P31H9-3 镀镍铜芯PTFE绝缘镀镍圆铜线编织屏蔽PFA护套电线电缆
Nickel plated copper core PTFE insulated nickel plated round copper wire braided shield PFA sheathed wire and cable
FF4P33H9-3 镀镍铜芯PTFE绝缘镀镍圆铜线绕包屏蔽PFA护套电线电缆
Nickel plated copper core PTFE insulated nickel plated round copper wire wrapped shield PFA sheathed wire and cable
FF4H5-3 镀镍铜芯PTFE绝缘PTFE生带护套电线电缆
Nickel plated copper core PTFE insulated PTFE sheathed wire and cable
FF4P31H5-3 镀镍铜芯PTFE绝缘镀镍圆铜线编织屏蔽PTFE生带护套电线电缆
Nickel plated copper core PTFE insulated nickel plated round copper wire braided shield PTFE green belt sheath wire and cable
FF4P33H5-3 镀镍铜芯PTFE绝缘镀镍圆铜线绕包屏蔽PTFE生带护套电线电缆
Nickel plated copper core PTFE insulated nickel plated round copper wire wrapped shield PTFE green belt sheath wire and cable
使用特性
额定电压:交流600V;
额定温度:260℃
使用环境温度:-65℃。
阻燃性能: 不延然 (290±5)℃×15min,无冒烟现象。
Features:
Related voltage:AC 600V
Related temperatur:260℃
The lowest environment temperature:-65℃
Flame retardant features: do not extended (290±5)℃×15min ,no smoke
镀镍铜芯PTFE绝缘电线参数表
Nickel plated copper PTFE insulated wire parameter table
导体标称截面 mm 2 Condcutor section area |
导体结构 根数/单线标称直径mm Conductor structure Number/singe wire nominal diameter |
成品电线外径mm Product outer diameter |
导体直流电阻 值Ω/km Conductor DC resistance |
成品电线重量 值kg/km The max.weight |
0.08 |
7/0.12 |
0.84±0.05 |
250 |
2.02 |
0.14 |
19/0.10 |
0.97±0.05 |
138 |
2.83 |
0.2 |
19/0.12 |
1.09±0.05 |
92.0 |
3.84 |
0.4/0.3 |
19/0.16 |
1.25±0.05 |
52.5 |
5.54 |
0.6/0.5 |
19/0.20 |
1.47±0.05 |
32.1 |
8.08 |
(0.75) |
19/0.23 |
1.66±0.05 |
24.3 |
10.2 |
1 |
19/0.26 |
1.73±0.05 |
20.0 |
12.1 |
1.2 |
19/0.28 |
1.91±0.08 |
16.4 |
14.9 |
(1.5) |
19/0.32 |
2.19±0.08 |
12.6 |
18.5 |
2 |
19/0.36 |
2.29±0.08 |
9.84 |
23.2 |
(2.5) |
37/0.30 |
2.72±0.10 |
7.37 |
31.5 |
3 |
37/0.32 |
2.82±0.10 |
6.50 |
36.3 |
(4) |
37/0.37 |
3.41±0.10 |
4.83 |
46.9 |
5 |
37/0.40 |
3.53±0.10 |
4.07 |
56.5 |
(6) |
37/0.45 |
4.25±0.10 |
3.26 |
69.5 |
8 |
133/0.29 |
5.18±0.10 |
2.28 |
99.7 |
