产品介绍：
用途：
本产品具有卓越的耐高温性能、耐潮湿性能、阻燃性能。特点：重量轻、体积小、柔软。主要用于-65~150℃高低温条件下电子设备、仪器仪表线路及其它精密电器装置内部连接等。
Usage:
this product has excellent high temperature resistance, moisture resistance, flame retardant properties. Features: light weight, small size, soft. Mainly used for -65~150℃ high and low temperature conditions, electronic equipment, instruments and circuit and other precision electrical devices, such as internal connection.
立即咨询
镀锡铜芯聚全氟乙丙烯绝缘电线电缆
Tin copper core poly fluorine ethylene propylene insulated wire and cable for aerospace use
技术规范 specification ：GJB/773A/11A-2000

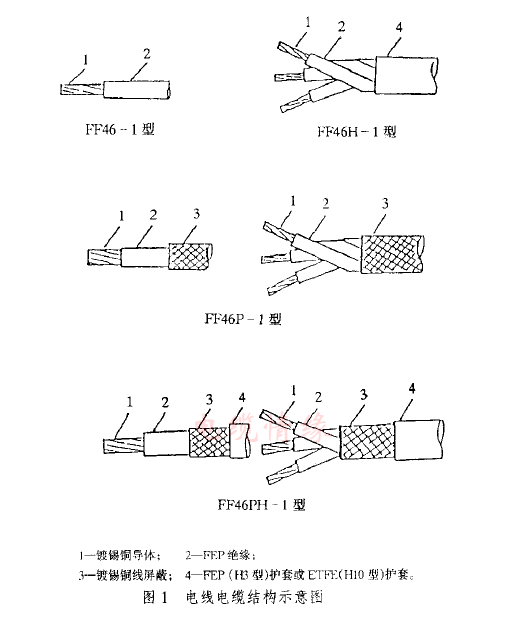

名称：FF46-1 镀锡铜芯FEP绝缘电线电缆
Name：Tin plated copper conductor FEP insulated wire and cable
FF46P11-1 镀锡铜芯FEP绝缘镀锡圆铜线编织屏蔽电线电缆
Tin plated copper conductor FEP insulated tin plated round copper wire braid shielded wire and cable
FF46H3-1 镀锡铜芯FEP绝缘FEP护套电线电缆
Tin plated copper conductor FEP insulated FEP sheathed wire and cable
FF46P11H3-1 镀锡铜芯FEP绝缘镀锡圆铜线编织屏蔽FEP护套电线电缆
Tin plated copper conductor FEP insulated tin plated round copper wire braided shield FEP sheathed wire and cable
FF46P13H3-1 镀锡铜芯FEP绝缘镀锡圆铜线绕包屏蔽FEP护套电线电缆
Tin plated copper conductor FEP insulated, tin plated round copper wire shielded FEP sheathed wire and cable
FF46H10-1 镀锡铜芯FEP绝缘ETFE护套电线电缆
Tin plated copper conductor FEP insulated ETFE sheathed wire and cable
FF46P11H10-1 镀锡铜芯FEP绝缘镀锡圆铜线编织屏蔽ETFE护套电线电缆
Tin plated copper conductor FEP insulated tin plated round copper wire braided shield ETFE sheathed wire and cable
FF46P13H10-1 镀锡铜芯FEP绝缘镀锡圆铜线绕包屏蔽ETFE护套电线电缆
Tin plated copper conductor FEP insulated, tin plated round copper wire shielded ETFE sheathed wire and cable
使用特性
额定电压：交流600V；
额定温度：150℃
使用环境温度：-65℃。
阻燃性能: 不延然 （150±5）℃×15min，无冒烟现象。
Features:
Related voltage:AC 600V
Related temperatur:150℃
The lowest environment temperature:-65℃
Flame retardant features: do not extended （150±5）℃×15min ,no smoke
镀锡铜芯FEP绝缘电线参数表
Parameter table of FEP insulated wire with tin plated copper core
|
导体标称截面 mm 2 Conductor section area |
导体结构 根数/单线标称直径mm Conductor structure No/single wire nominal diameter |
成品电线外径mm Cable OD |
导体直流电阻 值Ω/km Conductor max.DC resistance |
成品电线重量 值kg/km Max. Cable weight |
|
0.14 |
19/0.10 |
1.02±0.05 |
136 |
3.01 |
|
0.2 |
19/0.12 |
1.14±0.05 |
90.4 |
4.22 |
|
0.4/0.3 |
19/0.16 |
1.32±0.05 |
53.1 |
5.87 |
|
0.6/0.5 |
19/0.20 |
1.52±0.05 |
32.4 |
8.43 |
|
（0.75） |
19/0.23 |
1.70±0.05 |
24.6 |
10.5 |
|
1 |
19/0.26 |
1.80±0.05 |
20.4 |
12.5 |
|
1.2 |
19/0.28 |
2.06±0.08 |
16.6 |
16.1 |
|
（1.5） |
19/0.32 |
2.25±0.08 |
12.7 |
19.5 |
|
2 |
19/0.36 |
2.41±0.08 |
10.0 |
24.5 |
|
（2.5） |
37/0.30 |
2.78±0.10 |
7.43 |
32.3 |
|
3 |
37/0.32 |
2.90±0.10 |
6.63 |
37.3 |
|
（4） |
37/0.37 |
3.38±0.10 |
4.88 |
46.9 |
|
5 |
37/0.40 |
3.53±0.10 |
4.13 |
56.5 |
|
（6） |
37/0.45 |
4.08±0.10 |
3.30 |
68.2 |
|
8 |
133/0.29 |
5.03±0.10 |
2.30 |
97.0 |
镀锡铜芯FEP绝缘电缆参数表
Parameter table of FEP insulated cable with tin plated copper core
|
导体标称 截面 Conductor section area |
护套厚度 Sheath thickness |
屏蔽单丝 标称直径 Mm Shield single wire nominal diameter |
成品电缆外径值 MAX.OD of cable |
导体直流电阻 值Ω/km Conductor DC resistance |
|||||
|
mm 2 |
max. |
min. |
FF46H3-1 FF46H10-1 |
FF46P11-1 |
FF46P11H3-1 FF46P11H10-1 |
FF46P13H3-1 FF46P13H10-1 |
|||
|
1×0.14 |
0.38 |
0.18 |
0.10 |
- |
1.52 |
2.24 |
2.01 |
136 |
|
|
1×0.2 |
0.38 |
0.18 |
0.10 |
- |
1.64 |
2.36 |
2.13 |
90.4 |
|
|
1×0.4/0.3 |
0.38 |
0.18 |
0.10 |
- |
1.82 |
2.54 |
2.31 |
53.1 |
|
|
1×0.6/0.5 |
0.38 |
0.18 |
0.10 |
- |
2.02 |
2.74 |
2.51 |
32.4 |
|
|
1×（0.75） |
0.38 |
0.18 |
0.10 |
- |
2.20 |
2.92 |
2.69 |
24.6 |
|
|
1×1 |
0.38 |
0.18 |
0.10 |
- |
2.30 |
3.03 |
2.80 |
20.4 |
|
|
1×1.2 |
0.38 |
0.18 |
0.10 |
- |
2.59 |
3.31 |
3.08 |
16.6 |
|
|
1×（1.5） |
0.38 |
0.18 |
0.10 |
- |
2.78 |
3.50 |
3.27 |
12.7 |
|
|
1×2 |
0.38 |
0.18 |
0.10 |
- |
2.94 |
3.66 |
3.43 |
10.0 |
|
|
1×（2.5） |
0.38 |
0.18 |
0.10 |
- |
3.33 |
4.05 |
3.82 |
7.43 |
|
|
1×3 |
0.38 |
0.18 |
0.10 |
- |
3.45 |
4.17 |
3.94 |
6.63 |
|
|
1×（4） |
0.51 |
0.25 |
0.10 |
- |
3.93 |
4.95 |
4.72 |
4.88 |
|
|
1×5 |
0.51 |
0.25 |
0.10 |
- |
4.08 |
5.10 |
4.87 |
4.13 |
|
|
1×（6） |
0.51 |
0.25 |
0.10 |
- |
4.63 |
5.65 |
5.42 |
3.30 |
|
|
2×0.14 |
0.38 |
0.18 |
0.10 |
2.86 |
2.59 |
3.31 |
3.08 |
139 |
|
|
2×0.2 |
0.38 |
0.18 |
0.10 |
3.10 |
2.83 |
3.55 |
3.32 |
92.2 |
|
|
2×0.4/0.3 |
0.38 |
0.18 |
0.10 |
3.46 |
3.19 |
3.91 |
3.68 |
54.2 |
|
|
2×0.6/0.5 |
0.38 |
0.18 |
0.10 |
3.86 |
3.59 |
4.31 |
4.08 |
33.1 |
|
|
2×（0.75） |
0.51 |
0.25 |
0.10 |
4.52 |
3.95 |
4.97 |
4.74 |
25.1 |
|
|
2×1 |
0.51 |
0.25 |
0.10 |
4.72 |
4.15 |
5.17 |
4.94 |
20.8 |
|
|
2×1.2 |
0.51 |
0.25 |
0.10 |
5.30 |
4.73 |
5.75 |
5.52 |
16.9 |
|
|
2×（1.5） |
0.51 |
0.25 |
0.10 |
5.68 |
5.11 |
6.13 |
5.90 |
13.0 |
|
|
2×2 |
0.51 |
0.25 |
0.10 |
6.00 |
5.43 |
6.45 |
6.22 |
10.2 |
|
|
3×0.14 |
0.38 |
0.18 |
0.10 |
3.03 |
2.76 |
3.48 |
3.25 |
139 |
|
|
3×0.2 |
0.38 |
0.18 |
0.10 |
3.29 |
3.02 |
3.74 |
3.51 |
92.2 |
|
|
3×0.4/0.3 |
0.38 |
0.18 |
0.10 |
3.68 |
3.41 |
4.13 |
3.90 |
54.2 |
|
|
3×0.6/0.5 |
0.38 |
0.18 |
0.10 |
4.11 |
3.84 |
4.56 |
4.33 |
33.1 |
|
|
3×（0.75） |
0.51 |
0.25 |
0.10 |
4.80 |
4.23 |
5.25 |
5.02 |
25.1 |
|
|
3×1 |
0.51 |
0.25 |
0.10 |
5.02 |
4.45 |
5.47 |
5.24 |
20.8 |
|
|
3×1.2 |
0.51 |
0.25 |
0.10 |
5.64 |
5.07 |
6.09 |
5.86 |
16.9 |
|
|
3×（1.5） |
0.51 |
0.25 |
0.10 |
6.05 |
5.48 |
6.50 |
6.27 |
13.0 |
|
|
3×2 |
0.51 |
0.25 |
0.10 |
6.40 |
5.83 |
6.85 |
6.62 |
10.2 |
|
|
4×0.14 |
0.38 |
0.18 |
0.10 |
3.31 |
3.04 |
3.76 |
3.53 |
139 |
|
|
4×0.2 |
0.38 |
0.18 |
0.10 |
3.60 |
3.33 |
4.05 |
3.82 |
92.2 |
|
|
4×0.4/0.3 |
0.38 |
0.18 |
0.10 |
4.04 |
3.77 |
4.49 |
4.26 |
54.2 |
|
|
4×0.6/0.5 |
0.51 |
0.25 |
0.10 |
4.82 |
4.25 |
5.27 |
5.04 |
33.1 |
|
|
4×（0.75） |
0.51 |
0.25 |
0.10 |
5.26 |
4.69 |
5.71 |
5.48 |
25.1 |
|
|
4×1 |
0.51 |
0.25 |
0.10 |
5.50 |
4.93 |
5.95 |
5.72 |
20.8 |
|
|
4×1.2 |
0.51 |
0.25 |
0.10 |
6.20 |
5.63 |
6.65 |
6.42 |
16.9 |
|
|
4×（1.5） |
0.51 |
0.25 |
0.10 |
6.66 |
6.09 |
7.11 |
6.88 |
13.0 |
|
|
4×2 |
0.51 |
0.25 |
0.10 |
7.05 |
6.48 |
7.50 |
7.27 |
10.2 |
|
